Last week I picked up a blink(1) at a conference, and had a lot of fun with it. It's a pretty simple little device that can conjure up any color that can be described via RGB. Naturally, I decided to hook it up to IBM Watson's Tone Analyzer in order to visualize the sentiment of my Slack channel in real time.

Don't worry, after these pictures there will be a lot of code, and if you want to jump straight into it find it/fork it on github.

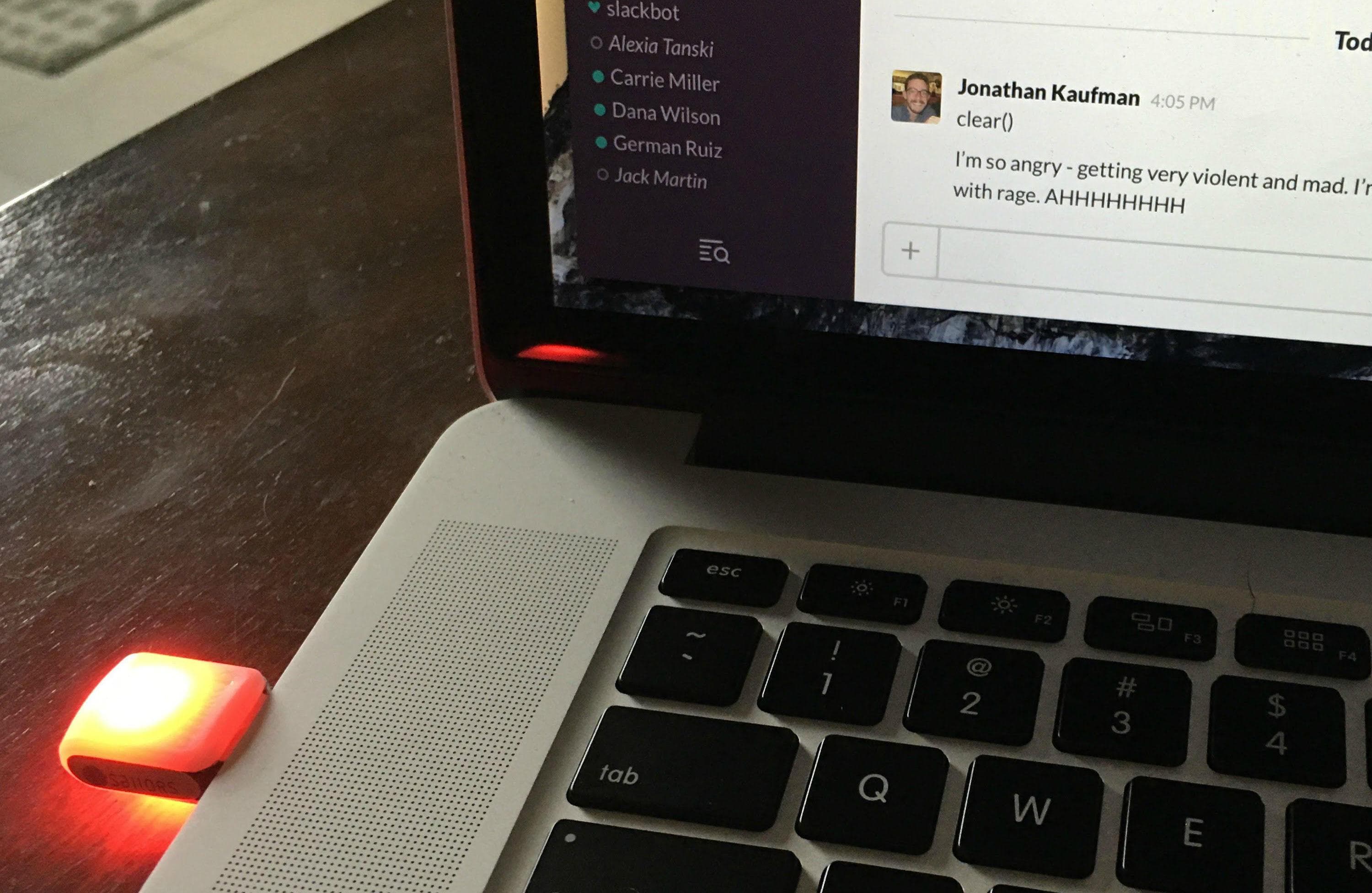

Whenever someone messages something angry, the blink(1) turns red:

Angry

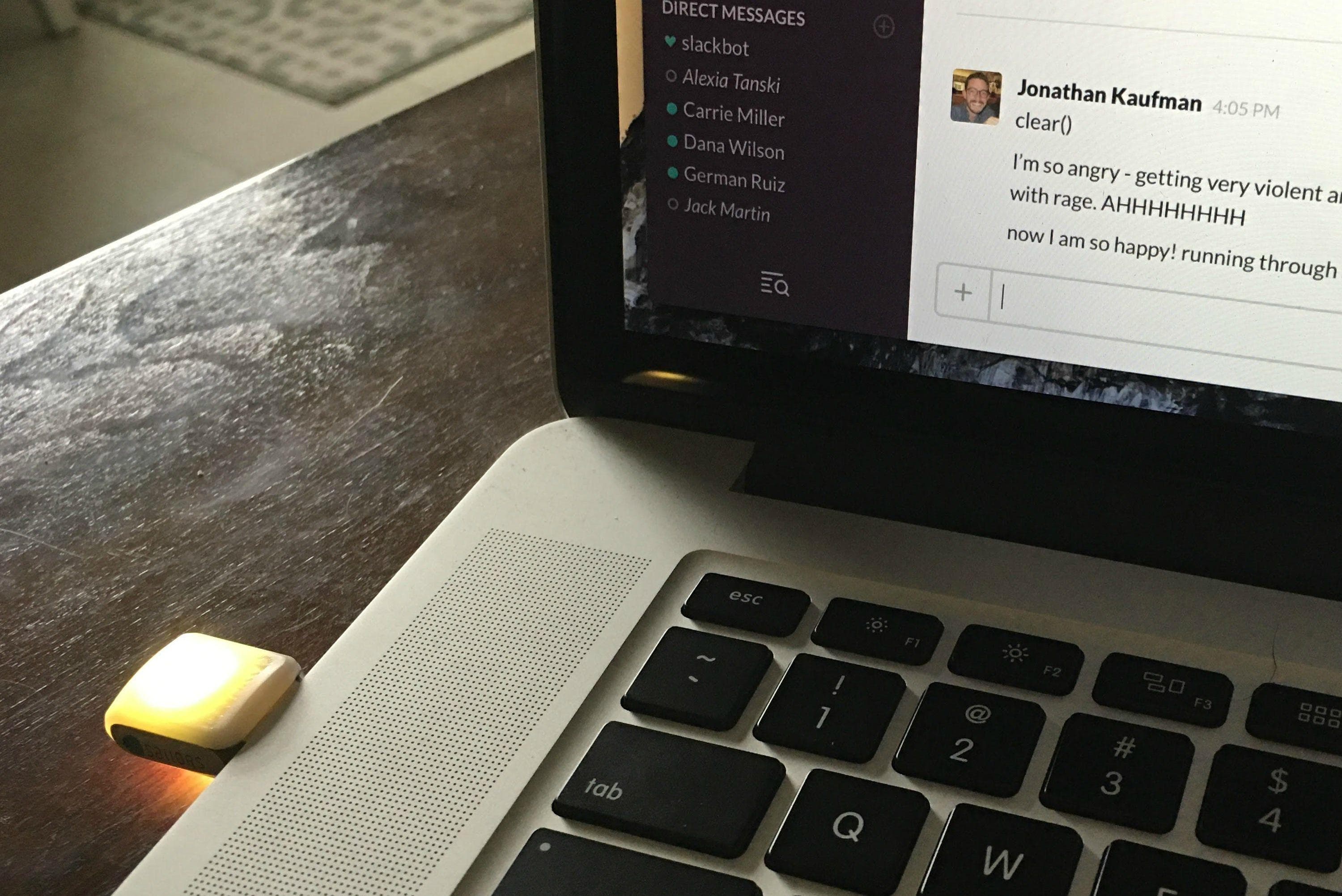

...or when they say something happy it turns yellow:

Happy

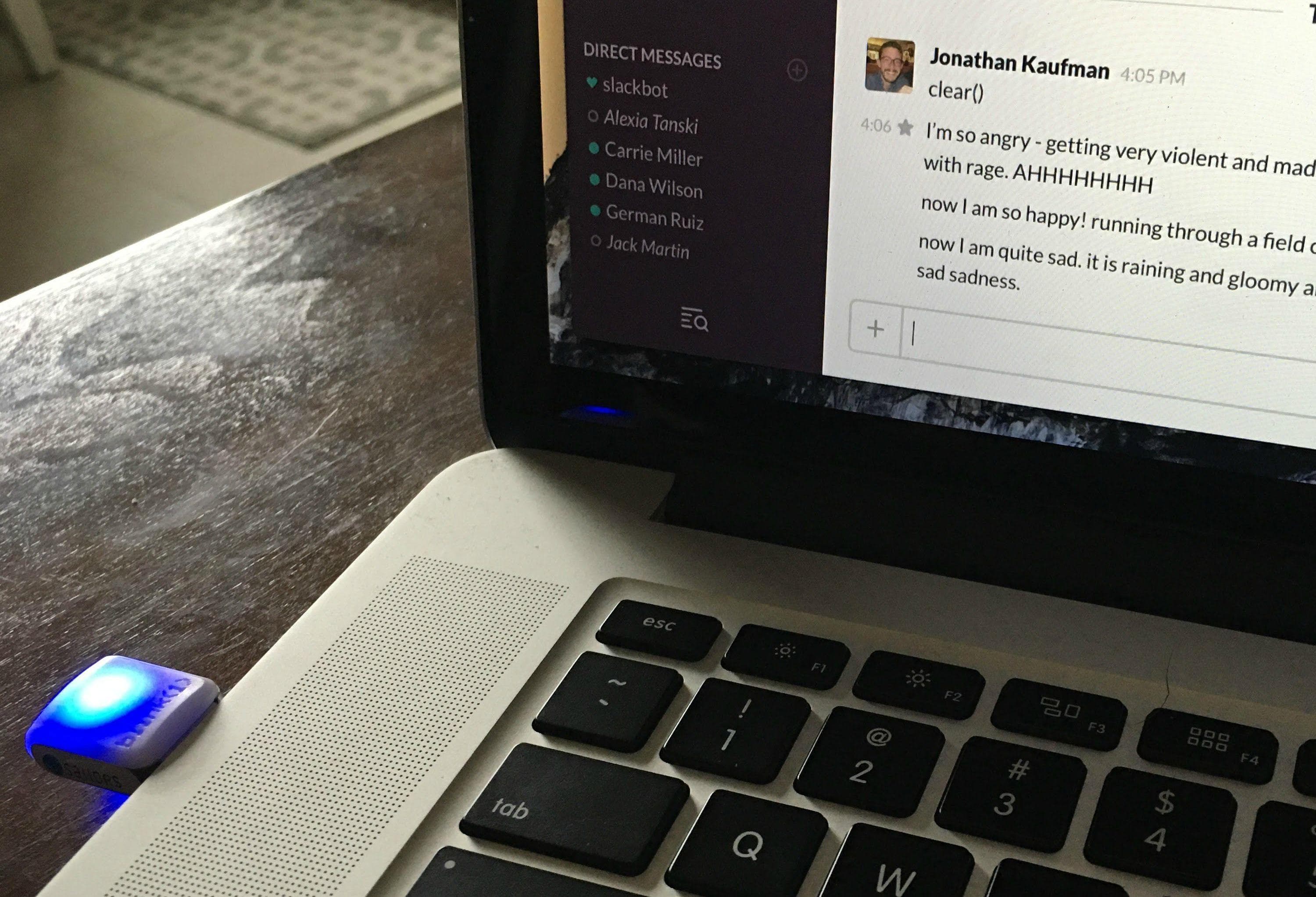

...or when they say something sad it turns blue:

Sad

...and all shades in between.

Watson gives us values of 0 - 1 for the following nine sub-categories from the following three categories:

  • Emotional Tone: cheerfulness, negative, and anger Writing Tone: analytical,
  • confident, and tentative Social Tone: openness, agreeableness,
  • conscientiousness

We'll do our best to construct RGB values from these... more on that later.

Of course, this doesn't have to be hooked up to Slack, but can be applied to any real time stream of text. It would be interesting to see a visualization in real time of a Twitter feed, or the comments on a blog, or maybe even the captions on a TV.

let's dive into the code, shall we?

First we have all of our imports:

import Blink1 from 'node-blink1';
import Promise from 'bluebird';
import toneAsync from './toneAsync';
import Slack from 'slack-client';
import fs from 'fs';

And then we define a few constants:

// the token we'll use to authenticate w/ slack
const SLACK_TOKEN = process.env.SLACK_TOKEN || fs.readFileSync('./SLACK_TOKEN.txt', 'utf8');
// Automatically reconnect after an error response from Slack
const AUTO_RECCONECT = true;
// Automatically mark each message as read after it is processed
const AUTO_MARK = true;
// the time it takes to fade da blinker's colorz
const FADE_TIME = 1000;

Once that's taken care of, we initialize the blink(1):

var blink = Promise.promisifyAll(new Blink1());
blink.off();
blink.setRGB(0, 0, 0);

The RGB value has to be set in order for the fadeToRGB method (used later in the code) to work. This is why we initialize it to (0,0,0).

And initialize Slack (or wherever we want to get our real time data from):

var slack = new Slack(SLACK_TOKEN, AUTO_RECCONECT, AUTO_MARK);
slack.on('open', () => {
  console.log(`Connected to ${slack.team.name} as @${slack.self.name}`);
});
slack.on('message', ({text}) => {
  console.log(`analyzing "${text}" ...`);
  textToColor(text);
});
slack.on('error', e => {
  console.error(e);
});
slack.login();

We now need to stream our data to Watson and then set the blink(1)'s color based on the response. That's what is happening in slack.on('message', ...), it passes the real time Slack text to our textToColor(text) method (where the magic happens):

// go off to Watson with some text and then set blink(1)s color based on the response
function textToColor(text) {
  toneAsync(text).then(({children: [
    {children: [{normalized_score: cheerfulness}, {normalized_score: negative}, {normalized_score: anger}]},
    {children: [{normalized_score: analytical}, {normalized_score: confident}, {normalized_score: tentative}]},
    {children: [{normalized_score: openness}, {normalized_score: agreeableness}, {normalized_score: conscientiousness}]}
  ]}) => {
    // cheerfulness, negative, and anger are emotional tone
    // analytical, confident, and tentative are writing tone
    // openness, agreeableness, conscientiousness are social tone

    // cheerfulness, and confident contribute to yellow (...conscientiousness?)
    // negative, and tentative contribute to blue  (...analytical?)
    // anger contributes to red
    // openness, and agreeableness contribute to green (?)
    var y = (cheerfulness + confident + conscientiousness)/3 * 255;
    var r = Math.max(anger * 255, y);
    var g = Math.max((openness + agreeableness)/2 * 255, y);
    var b = (negative + tentative + analytical)/3 * 255;

    return blink.fadeToRGBAsync(FADE_TIME, r, g, b);
  }).catch(e => console.error(e));
}

As you can see by my uncertainty in the comments, figuring out how to map Watson's response to RGB values proved to be rather... difficult. With this current configuration, Taylor Swift's "Blank Space" renders pink, Coldplay's "The Scientist" renders blue, and Rage Against the Machine's "Killing in the Name of" render's red... which feels right.

This is definitely the place that could use the most improvement. Should we scale our RGB values up such that one is always at 255 so that the blink(1) is always bright? Should we not only have certain traits contribute to values but have lack of traits contribute to other values - i.e. lack of confidence contributing to blue? Should "analytical" really contribute to blue and should "conscientiousness" really contribute to yellow? Should we define more preset colors for certain results?

By the way, the toneAsync method is just a wrapper around the toneAnalyzer methods from the watson-developer-cloud module on npm:

import Promise from 'bluebird';
import watson from 'watson-developer-cloud';

// build the credentials object from vcap services
var vcapServices = process.env.VCAP_SERVICES ? JSON.parse(process.env.VCAP_SERVICES) : require('./VCAP_SERVICES.json');
var toneCredentials = vcapServices.tone_analyzer[0].credentials;
toneCredentials.version = 'v2';

// initialize the tone analyzer
var toneAnalyzer = watson.tone_analyzer(toneCredentials);

// our export function. takes in text and returns a promise that resolves with
// the response from watson.
export default text => new Promise((resolve, reject) => {
  toneAnalyzer.tone({text: text}, (e, res, request) => {
    if (e) {
      reject(e);
    } else {
      resolve(res);
    }
  })
});

Github
